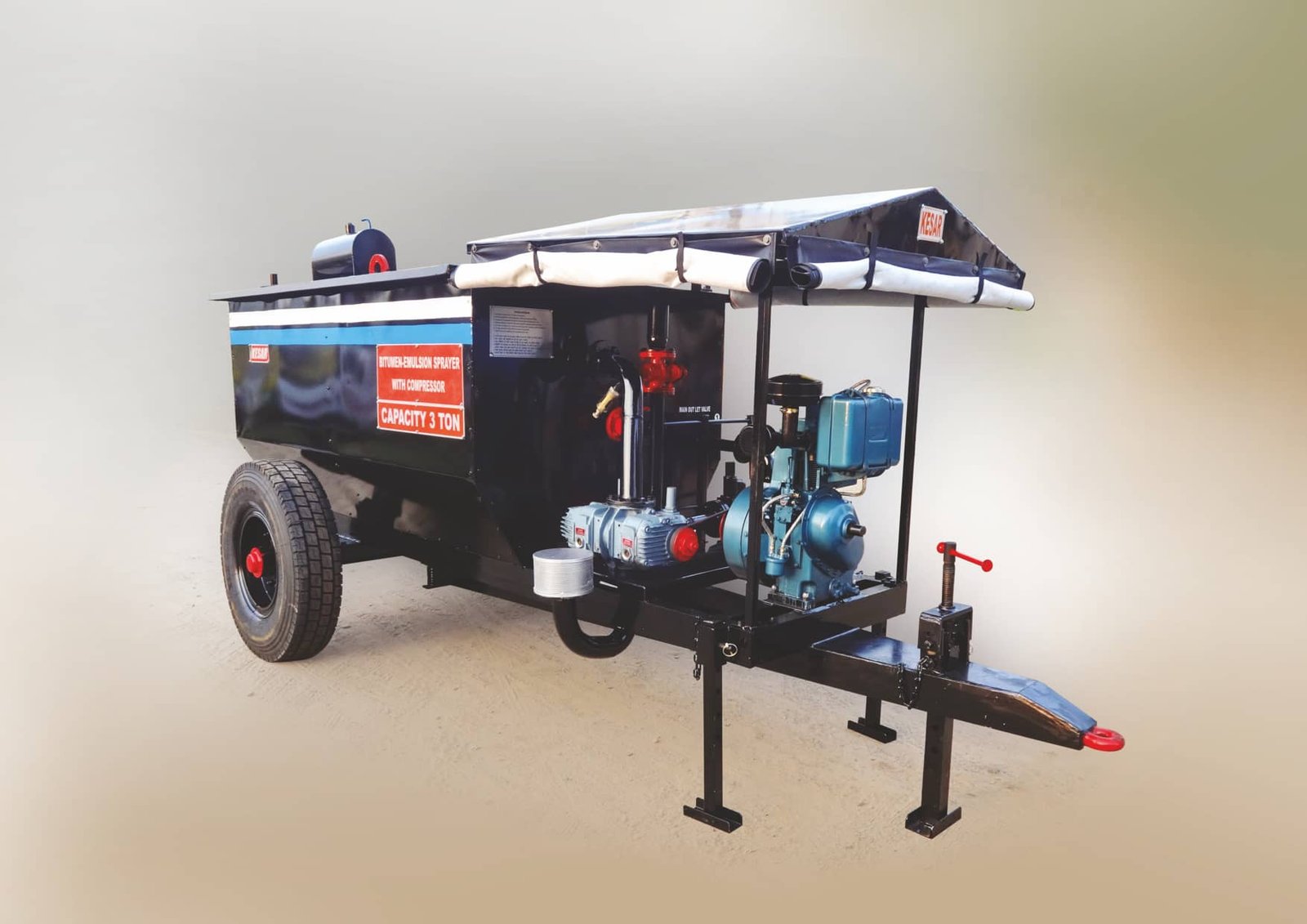

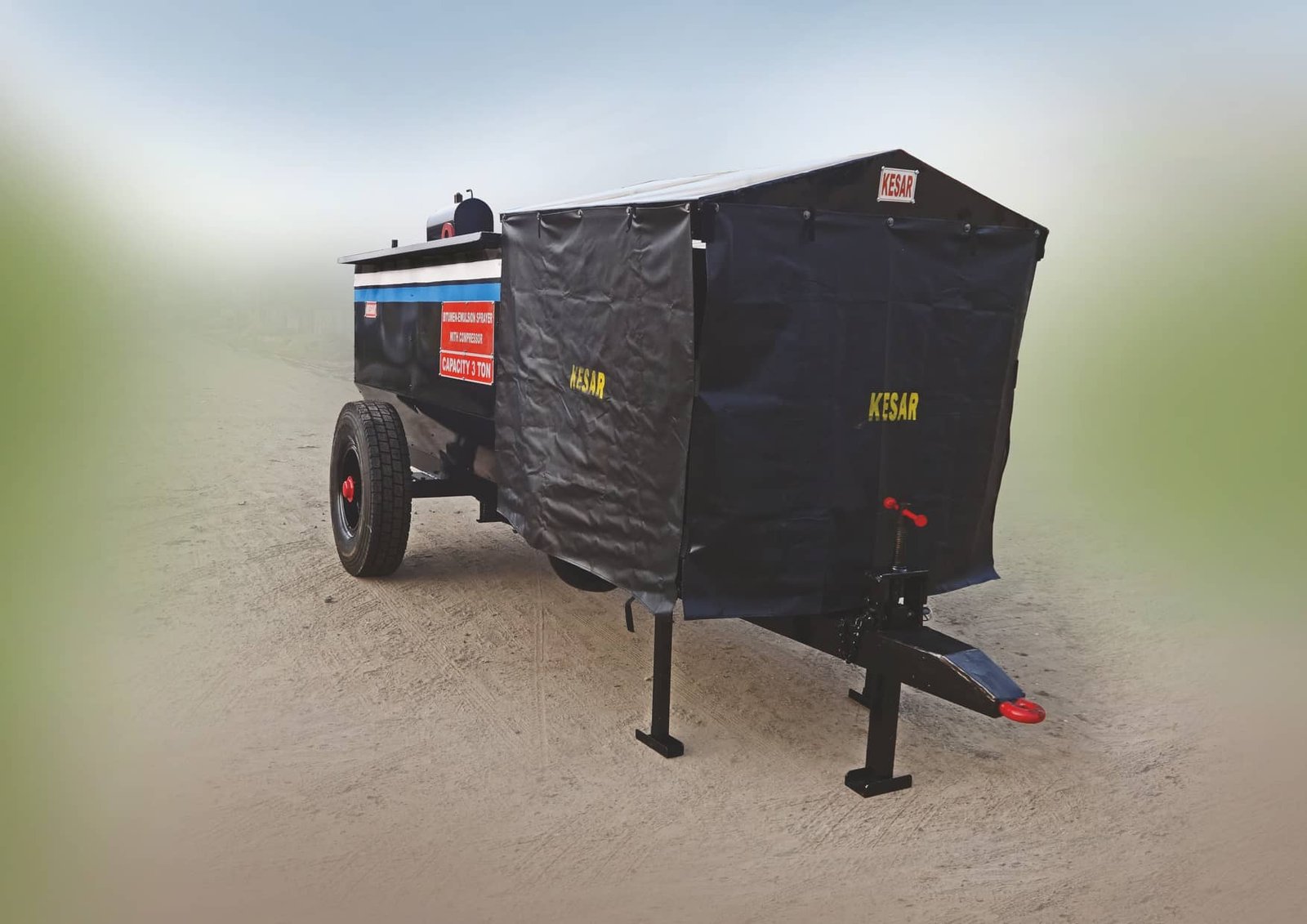

Bitumen Emulsion Sprayer With Compressor

Tractor Linked Tyre Mounted Bitumen-emulsion Sprayer With Compressor For Road Dust Cleaning Is Developed For Tack / Prime Coat By Hand Spraying Arrangement And Intermittent Spraying Application With Road Dust Cleaning Also. This Equipment Is Capable Of Applying Uniform Coating Of Hot Bitumen & Emulsion On Specified Surface.

Spraying Pipe Length Up To 5 Mtr.
Dust Cleaning Pipe Length Up To 10 Mtr.
Drum Loading System With Chain Pulley Block Of 1 Ton Capacity

Kirlosker / Standard Make 10 HP Air Cooled Diesel Engine
Suitable Twin Lob Type Compressor of Free Air Delivery 150 M³/Hour & Differential Pressure 0.7 Kg/cm² for Road Dust Cleaning with Pipe & Air Gun
Air Compressor
L.A.P. Burner
Wood Fire Bhatti
Bitumen–Emulsion Pump
Perfect Cleaning System for Bitumen Pump & Spray
Pipe Line

Fuel Tank
Spray Gun fitted with Fine Spray Nozzle & 2 Wooden Handle
3 to 5 Mtr. S.S. Corrugated Flexible Hose Pipe for Bitumen & R-2 Grade Rubber Hose Pipe for Emulsion
5 to 10 Mtr. Flexible Hose Pipe for Road Dust Cleaning Purpose
Drum Loading Systems
Chain Pulley Block (Cap. 1 Ton)
Dial Temperature Meter
Rubber Tyres: 1000 × 20 (Rear Axles) Radial – 2 Nos.
